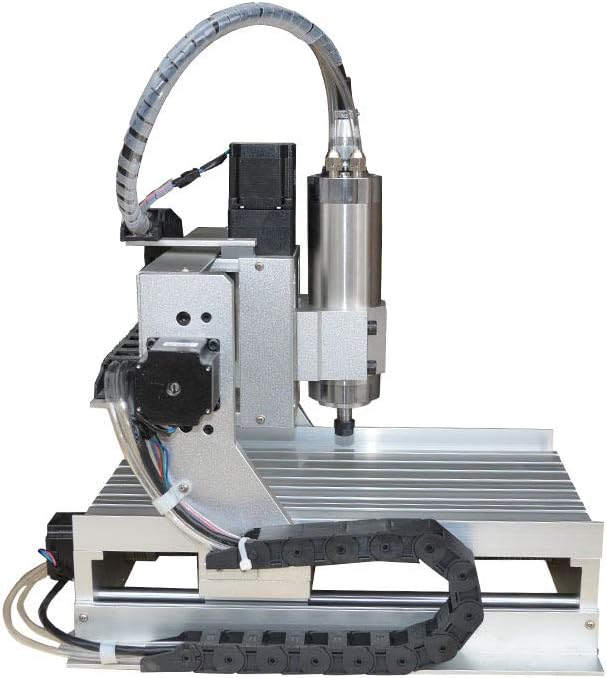

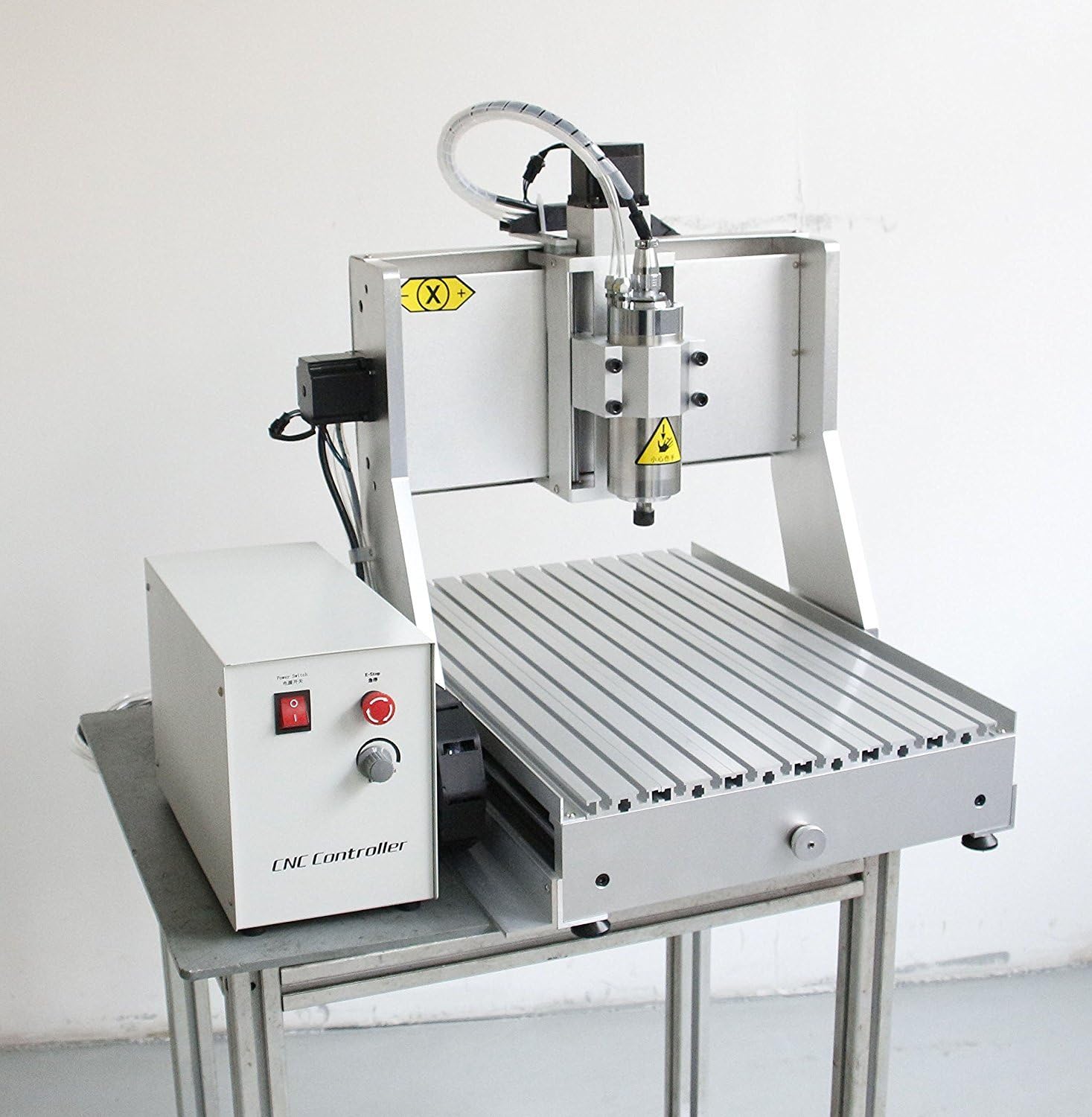

TEN-HIGH 3020 800W CNC Router Engraving Drilling Milling Machine,usb port.

Features: This machine can only do plane relief sculpture.Please choose the one with 4th Axis if you want to do 3D engraving. Suitable materials: wood, plastic, agate, jade, beeswax, shells, amber, stone, tooth, bamboo, acrylic, plexiglass, PVC, double color plate, all kinds of bones, etc. Soft metal(such as: aluminum, copper, gold, silver) and jade need to add sink. Specifications: Model: 3020CNC-800-USB Dimension: 490*420*425mm Working Travel: 200*300*60mm Workpieces height: ≤ 60mm Working table: T-slot aluminum alloy(430*300mm) Structure Material: 6061-T10 Aluminum Alloy Screw: Import 1605 ball screw X guid: Diameter 16mm round guid Y guid: Diameter 16mm round guid Z guid: Diameter 12mm round guid Spindle power: 800W Spindle Spindle control: 1.5KW VFD Spindle speed: 0-24000r/min Spindle Cooling way: water cooling Spindle collet :ER11-6mm Stepper: 57BYGH56-4011YD Stepper driver: 8 division driver NC code: Standard G code、nc、tab、mmg、PLt、eng、dxf Engraving Precision: 0.03mm repeated positioning accuracy: 0.02mm Control software: Mach3 Communication port: USB Software running system: universal Voltage: AC220V/AC110V Optional Packing list: 1* engraving machine 1* control box 5* engraving tools 1* spindle wrench 1* usb cable 1* power cord 1* machine connecting line 4* pressure plate 1* water pump

• 【THREE-AXIS】: Suitable for engraving plane, embossing, hollowing, drilling, milling, cutting.Effective Working Travel:200(X) * 300(Y) * 60(Z) mm
• 【WITH USB PORT】This one is equiped with USB port, support different kind of systems (32bit and 64bit, both computer and laptop).
• 【APPLICATION】: Suitable for PVC, acrylic, two-color board, engineering plastics, Bakelite, solid wood, MDF board,bones,stone,graphite and other processing engraving.
• 【BALL SCREW】: Upgraded ball screw to make the machine more accurate and stable during operation, with reversibility, high efficiency and low frictional resistance.

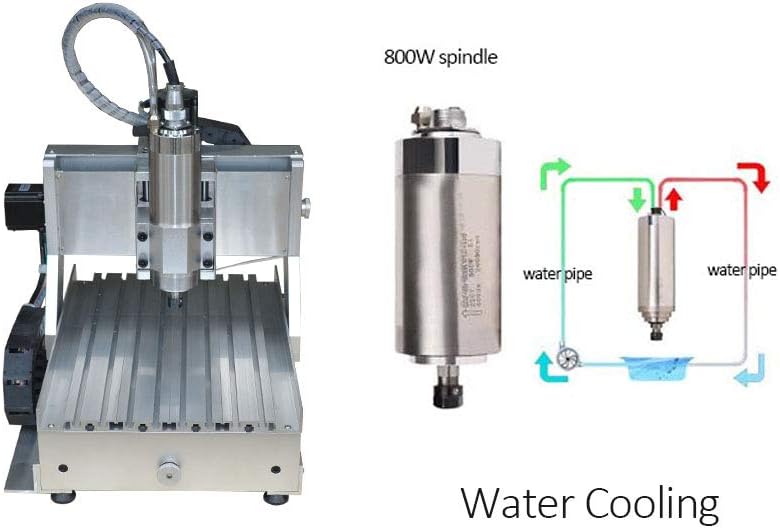

• 【WATER COOLING】: The main shaft adopts water-cooled motor, which has low noise and water circulation cooling. It can work for a long time without affecting performance, and the machining accuracy is higher.
